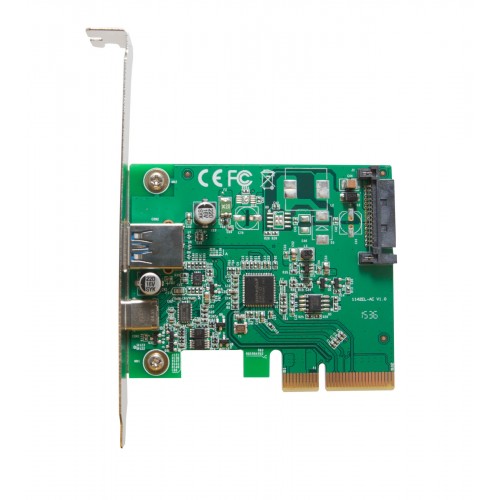

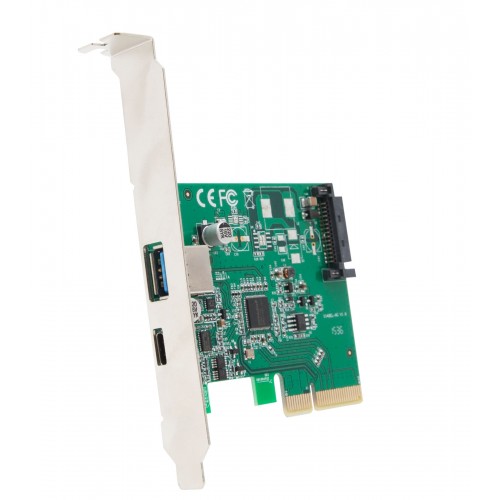

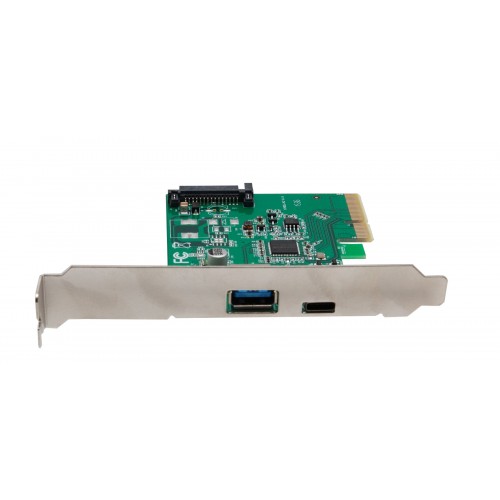

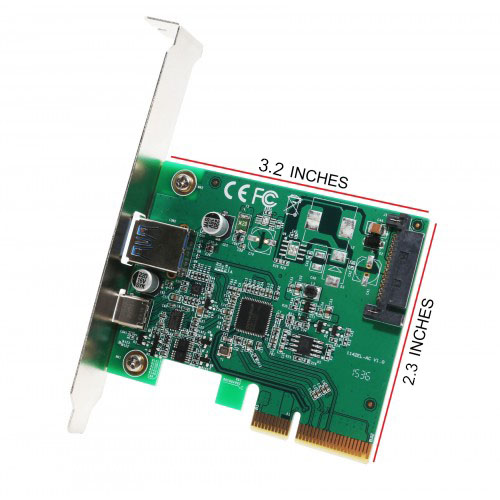

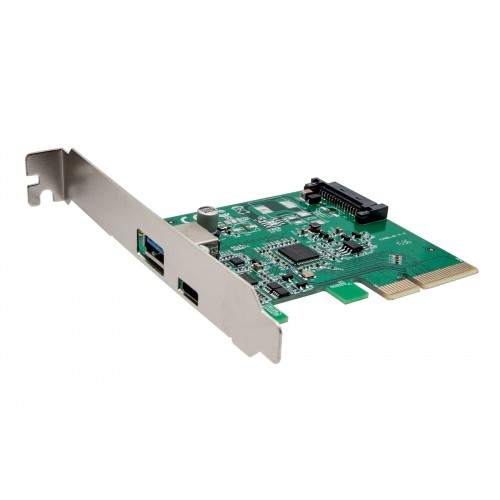

USB 3.1 Type C and Type A PCI-e x4 Card - SI-PEX20189
Part Number: SI-PEX20189 Brand: IOCrest
ASMedia ASM1142 USB 3.1 Host Controller

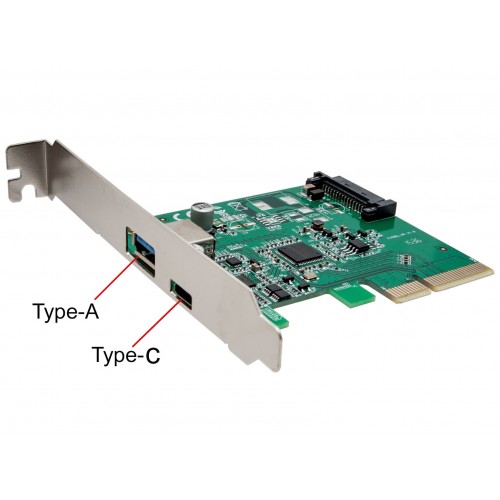

Type-A and Type-C ports
Compliant with Intel extensible Host Controller Interface specification revision 1.1
Compliant with USB 3.1 Specifications Revision 1.0. Supported Speeds: USB 3.1(10 Gbps), USB 3.0(5Gbps), USB2.0(480Mbps), Full(12Mbps), Low(1.5Mbps)
Supported transfer types: Control, Bulk, Interrupt, Isochronous
Requires SATA power connector. Internal SATA power connector for supplying +5V power
Each USB port supplies maximum +5VDC / 3a power output to USB device
Add USB 3.1 and USB type-C compatibility to your system with this PCI-Express x4 expansion card. It works with any PCI-E x4 or greater slot. This card adds USB 3.1 and USB type-C ports to your system for high speed transfers of up to 10Gb/s. This next generation standard is backwards compatible with you existing hardware.
OS SUPPORTED:
Windows OS
Windows OS
Package Information
Package Dimensions: L 6.80 × W 5.50 × H 1.50 in
Package Weight: 0.30lb
UPC: 810154019755

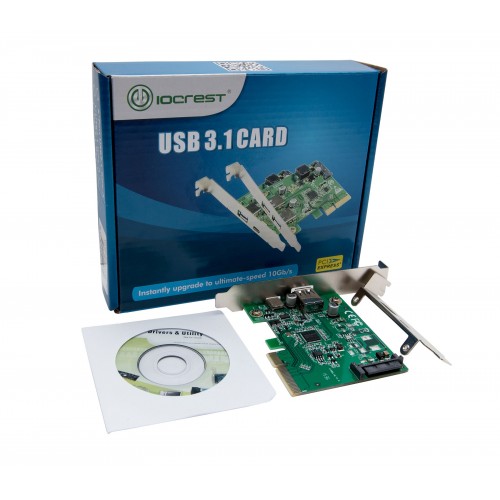

Package Content
- (1) USB 3.0 Type-C Card
- (1) Low-Profile Bracket
- (1) Driver CD
- (1) User Manual
- (1) Warranty Information
PC Motherboard with PCI-Express x4 Card Slot or Larger
Available SATA power connector
TYPE | OS | LANGUAGE | VERSION | FILE |
Manual | English | 1 | Download |
