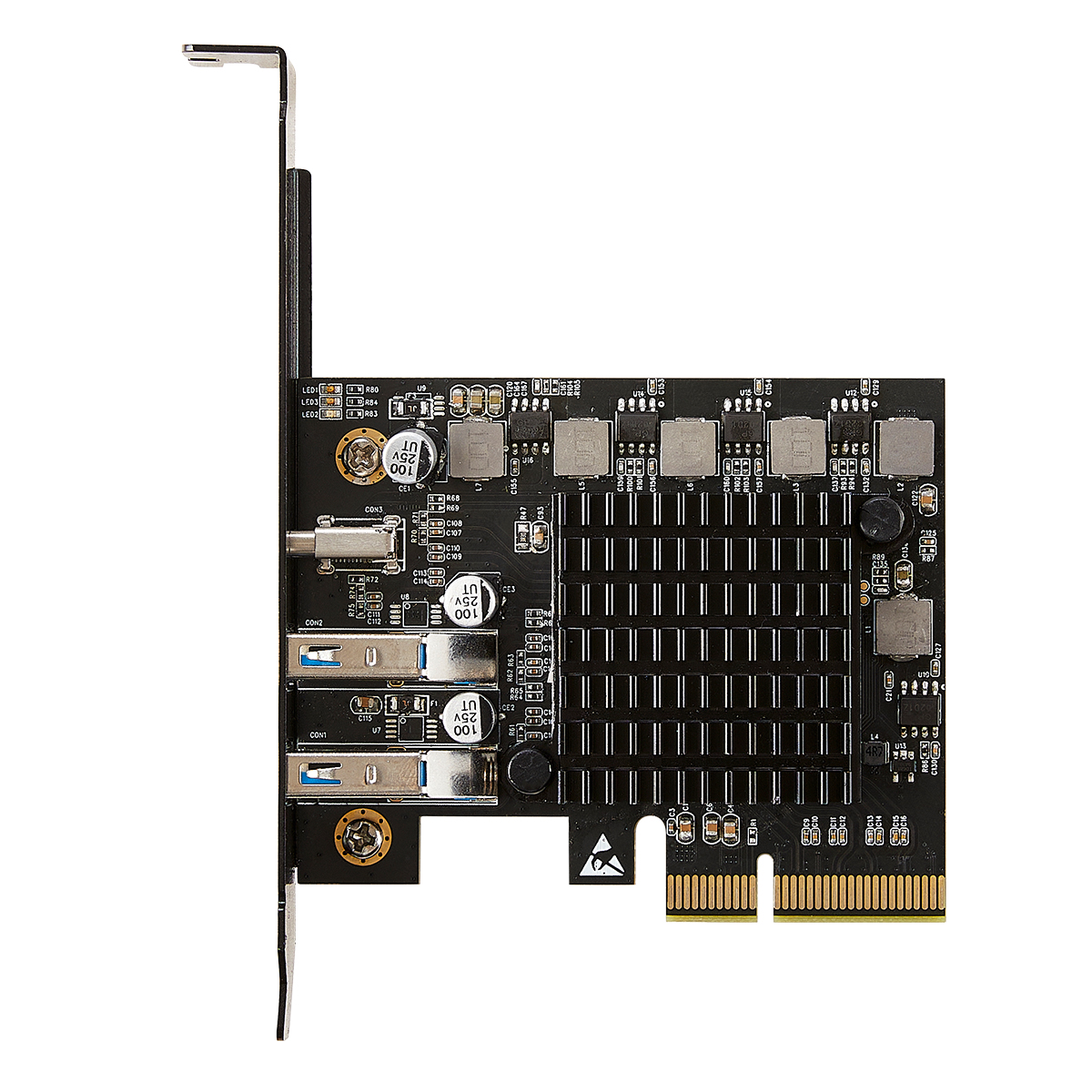

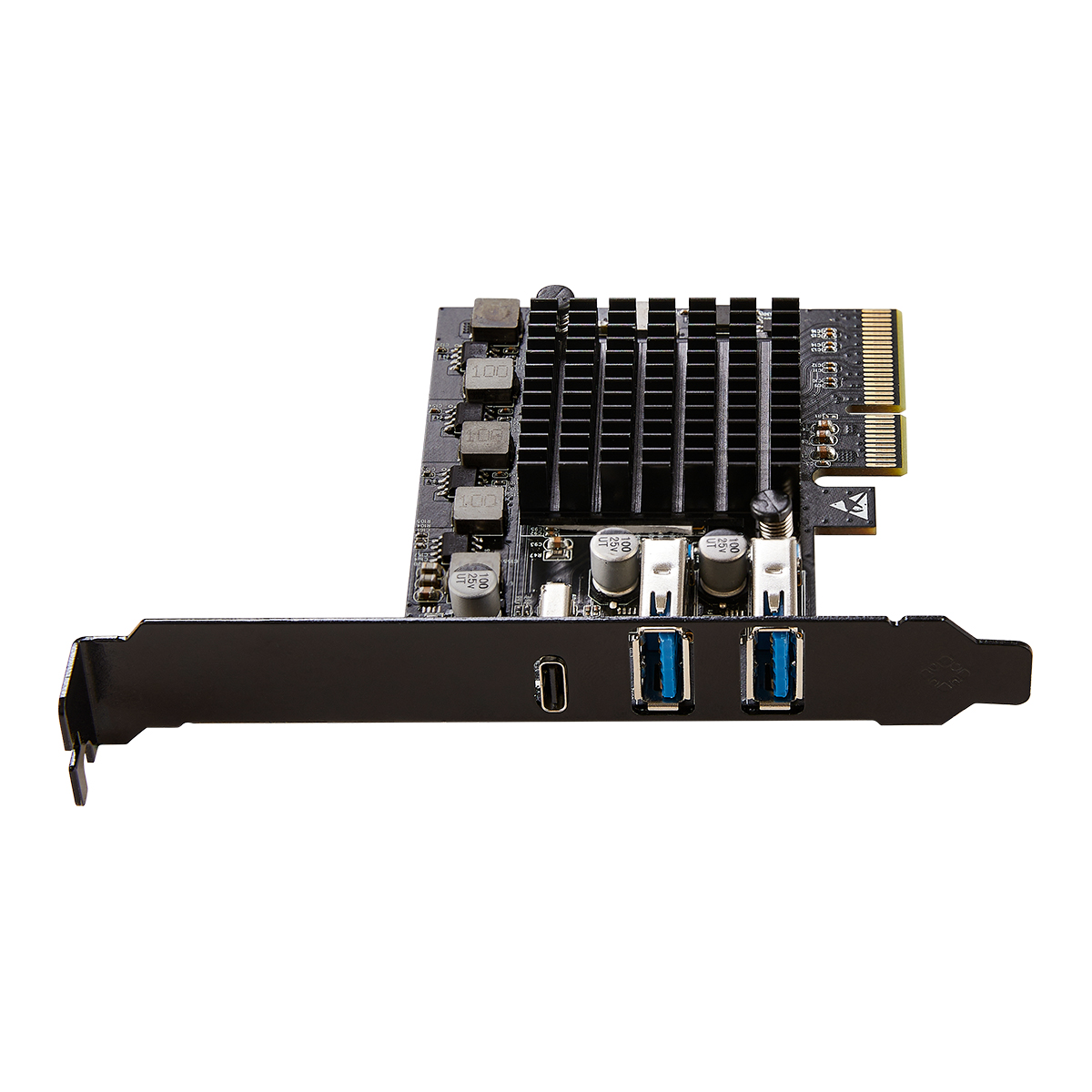

2 Port USB Type A 3.2 and Single Port USB-C 3.2 Gen 2×2 PCI-e Gen 3 x4 Expansion Card

2 Port USB Type A 3.2 and Single Port USB-C 3.2 Gen 2x2 PCI-e Gen 3 x4 Expansion Card

Part Number: SI-PEX20246 Brand: IO Crest

  • ASMedia ASM3242
  • 2 Port USB Type A 3.2 and Single Port USB-C 3.2 20Gbps Type-C downstream receptacle port. Up to 20Gbps data transfer speed.
  • Built with ASMedia ASM3242. Fully RoHS compliant. Note: The card does not support DP Alt Mode or USB Power Delivery.
  • Low Profile board. Regular size PCIe bracket on board and Low Profile PCIe bracket included. PCIe 3.0 x4 card fits in PCIe x4 or x8 or x16 slot.
Description PACKAGE DETAILS HARDWARE REQUIREMENTS DOWNLOAD QUESTIONS
The new expansion card adds full support for the new specification on motherboards with a PCIe x4 slot. With the USB Type-C port design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers an affordable way for users to upgrade to the USB 3.2 Gen 2x2 specification without having to get a new motherboard.
OS SUPPORTED: Windows 7, 8, 10, 11 Linux Kernal 2.6 or above
Package Information:

Package Dimensions: L 5.50 × W 4.25 × H 1.00 in
Package Weight: 0.50lb
UPC: 857426008963

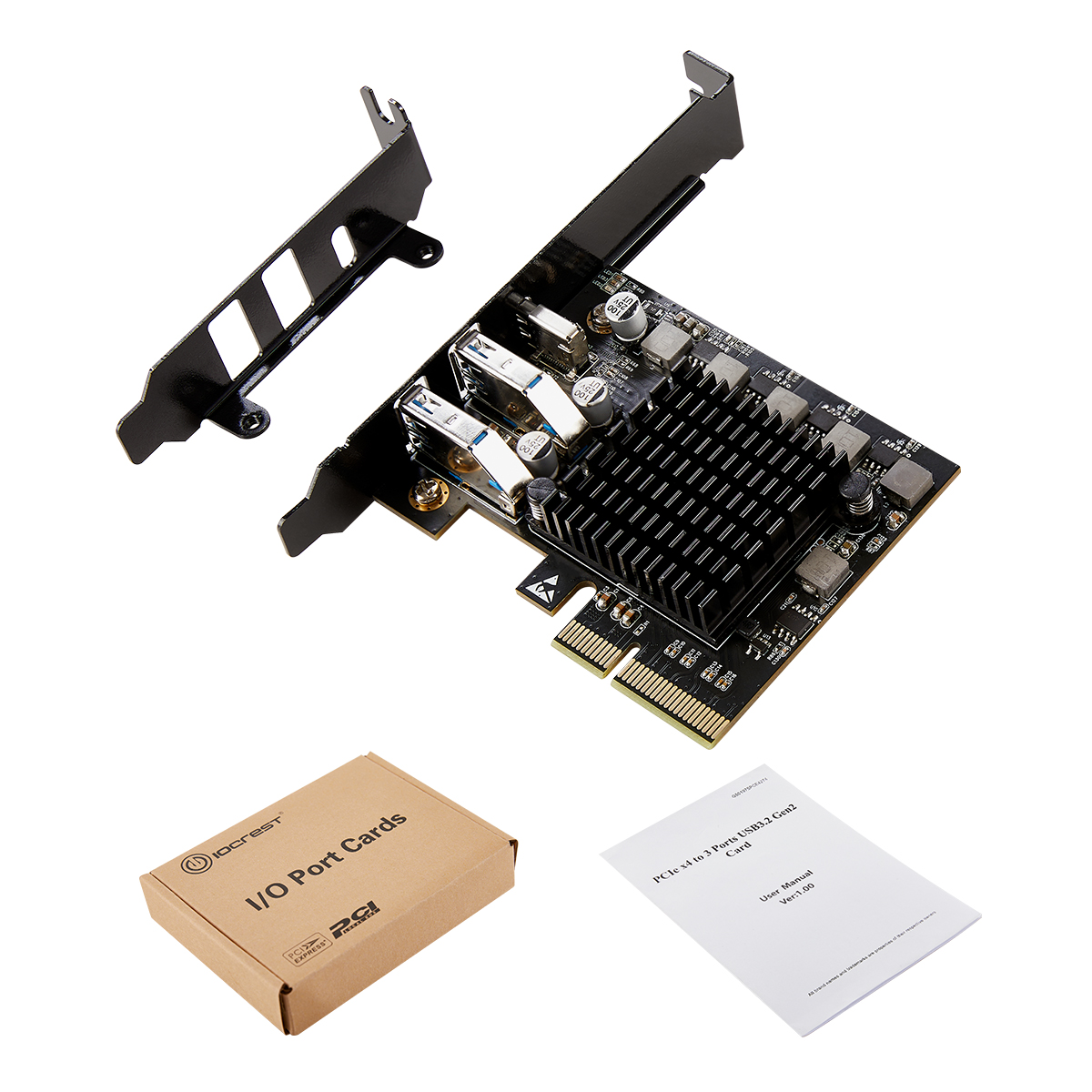

Package Content:
  • (1) USB 3.2 Gen 2×2 PCIe x4 Card
  • (1) Low Profile Bracket
  • (1)Driver CD
  • (1) Manual

PC with PCI-e x4 or Larger Slot and SATA Power Connector
