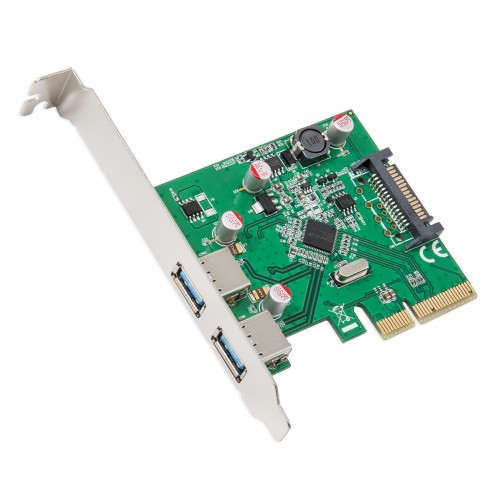

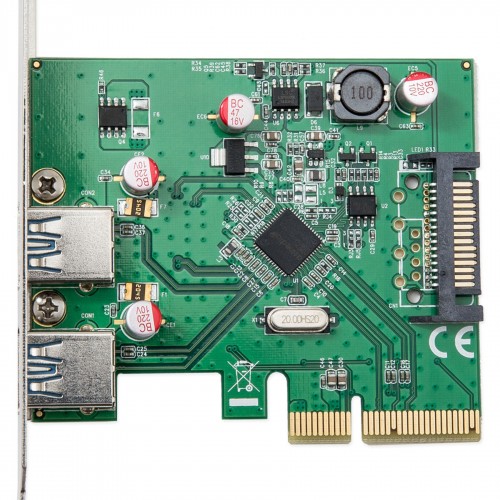

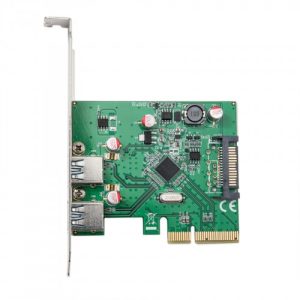

2 Port USB 3.1 Type-A PCI-E 3.0 x4 – SD-PEX20185

2 Port USB 3.1 Type-A PCI-E 3.0 x4 - SD-PEX20185

Part Number: SD-PEX20185 Brand: Syba

ASMedia ASM1142 USB 3.1 Host Controller 2 Type-A USB 3.1 Ports Compliant with Intel extensible Host Controller Interface specification revision 1.1 Compliant with USB 3.1 Specifications Revision 1.0. Supported Speeds: USB 3.1(10 Gbps), USB 3.0(5Gbps), USB2.0(480Mbps), Full(12Mbps), Low(1.5Mbps) Supported transfer types: Control, Bulk, Interrupt, Isochronous Requires SATA power connector. Internal SATA power connector for supplying +5V power

Upgrade your system with the fastest USB ports available. Utilizing a PCI-Express x4 lane these USB 3.1 ports operate at 10 Gbps full-duplex mode. Two times faster than normal USB 3.0 ports yet backwards compatible with USB 3.0/2.0 devices. This is an ideal choice for desktop systems that need higher transfer speeds for large volumes of data.
OS SUPPORTED: All Windows OS



Package Information

Package Dimensions: L 7.00 × W 5.60 × H 1.50 in
Package Weight: 0.25lb
UPC: 810154019717

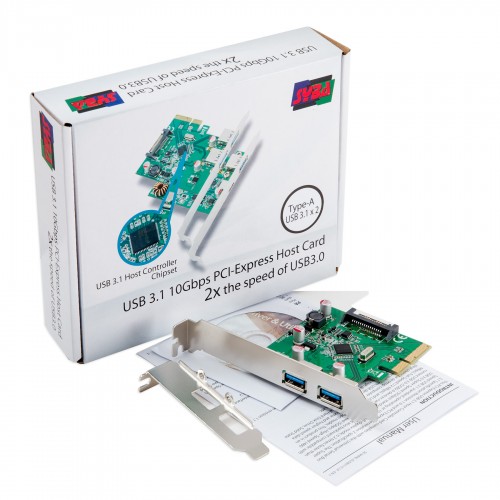

Package Content
  • (1) USB 3.1 Type-A Controller Card
  • (1) Driver CD
  • (1) User Manual
  • (1) Low Profile Bracket

PC Motherboard with PCI-Express x4 Card Slot or Larger
Available SATA power connector

TYPE OS LANGUAGE VERSION FILE
Product DATA Sheet English 1 Download
