1 Port USB 3.1 Type-C PCI-E 3.0 x1 - SD-PEX20186
Part Number: SD-PEX20186 Brand: Syba
ASMedia ASM1142 USB 3.1 Host Controller
Compliant with Intel extensible Host Controller Interface specification revision 1.1
Compliant with USB 3.1 Specifications Revision 1.0
Supported Speeds: USB 3.1(10 Gbps), USB 3.0(5Gbps), USB2.0(480Mbps), Full(12Mbps), Low(1.5Mbps)
Supported transfer types: Control, Bulk, Interrupt, Isochronous
Requires SATA power connector. Internal SATA power connector for supplying +5V power
Supports Windows 10/8.1/8/7
Upgrade your system with the fastest USB ports available. Utilizing a PCI-Express x1 lane this USB 3.1 port operates at 10Gbps full-duplex mode. Two times faster than normal USB 3.0 ports yet backwards compatible with USB 3.0/2.0 devices. This is an ideal choice for desktop systems that need higher transfer speeds for large volumes of data.
OS SUPPORTED:
Windows 7, 8, 10
Package Information
Package Dimensions: L 7.00 × W 5.60 × H 1.50 in
Package Weight: 0.25lb
UPC: 810154019724

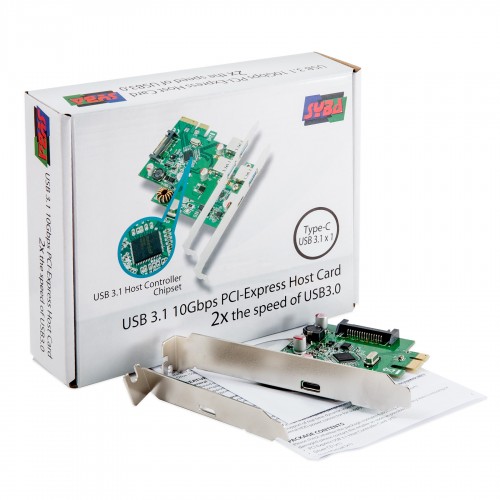

Package Content
- (1) USB 3.1 Type-C Controller Card
- (1) Driver CD
- (1) User Manual
- (1) Low Profile Bracket
PC Motherboard with PCI-Express x1 Card Slot or Larger
Available SATA power connector
TYPE | OS | LANGUAGE | VERSION | FILE |
Product DATA Sheet | English | 1 | Download |
