1 M.2 B-Key to SATA Pass Through and M.2 M-Key PCI-e x4 Convertor Card – SI-PEX40117

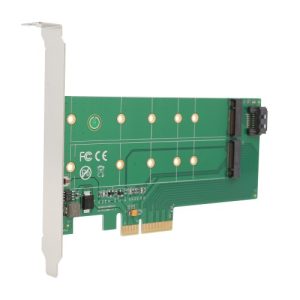

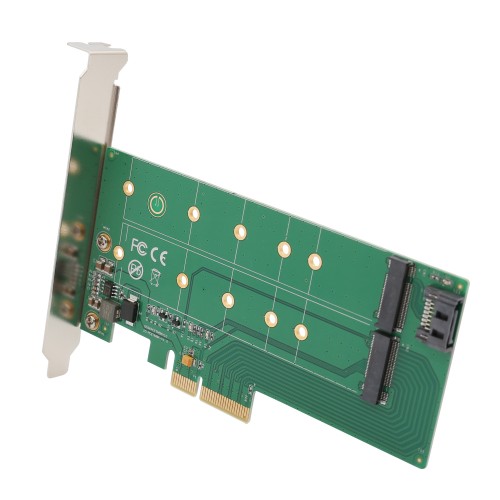

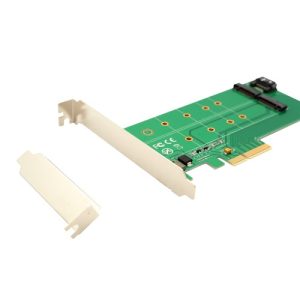

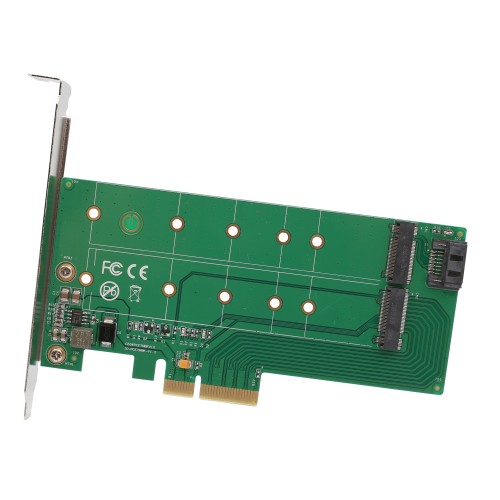

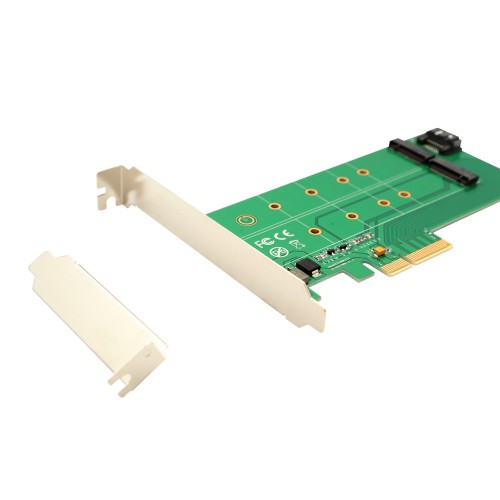

1 M.2 B-Key to SATA Pass Through and M.2 M-Key PCI-e x4 Convertor Card - SI-PEX40117

Part Number: SI-PEX40117 Brand: IOCrest

Work with both M-Key and B-Key at the Same Time Easy installation and no driver required Supports data transfer up to 6.0Gb/s 5 screws holes available to set on PCB board Dual voltage power supply 12V and 3.3V to provide more secure and stable power usage High Quality tantalum capacitors with one piece high power inductor Supports one M.2 PCIe (NVMe or AHCI) SSD and a second M.2 SATA 6Gbps SSD simultaneously.
Description PACKAGE DETAILS HARDWARE REQUIREMENTS DOWNLOAD QUESTIONS

Want to be be able to use both your M key AND B key M.2 ssd drives on the same system? Now you can with the IOCrest SI-PEX40117. System is Plug N Play, so drivers will install on their own.
OS SUPPORTED: Windows 7, 8, 10, Windows CE, Linux



Package Information

Package Dimensions: L 6.75 × W 5.50 × H 1.50 in
Package Weight: 0.30lb
UPC: 810154012435

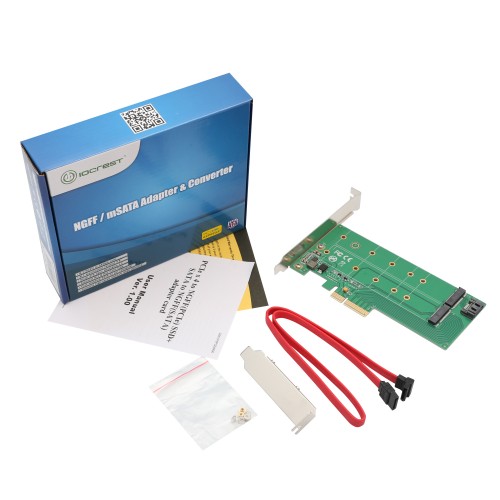

Package Content
  • (1) PCIE X4 to M.2 PCIe SSD + SATA M.2 Adapter card
  • (1) User Manual
  • (1) SATA Cable
  • (2) Screw Drive
  • 4x M.2 SSD mounting screws

PC Motherboard with PCI-Express x4 Card Slot or Larger
