8 Port Serial DB9 RS-232 PCI Controller Card – SI-PCI15068

8 Port Serial DB9 RS-232 PCI Controller Card - SI-PCI15068

Part Number: SI-PCI15068 Brand: IOCrest

Connection type: DB62 female, DB62 to 8 RS232 and DB9. Transmission rate: 921.6Kbps. Data bits: 5, 6, 7, 8. Stop bits: 1, 1.5, 2. Check digit: None, Even, Odd, Space, Mark. Flow control: RTS / CTS XON / XOFF Both sending and receiving support 64Byte FIFO driver and built-in software and hardware flow control. Interface static protection: two-way protection, interface 200W lightning surge protection, maximum static protection 30KV. PCI Bus: PCI 32-bit 33Mhz bus interface. Compliant with PCI specification version 2.1. Support to change the serial port number
Description PACKAGE DETAILS HARDWARE REQUIREMENTS DOWNLOAD QUESTIONS

PCI interface charging individual electric power micro-control device weekly function, average support Linux open for Linux and micro-soft Windows work system . RS232 serial port transmission speed up to 921.6Kbps 15KV / 20KV electrostatic protection function 200W surge protection function Support industry computer Serial interface:

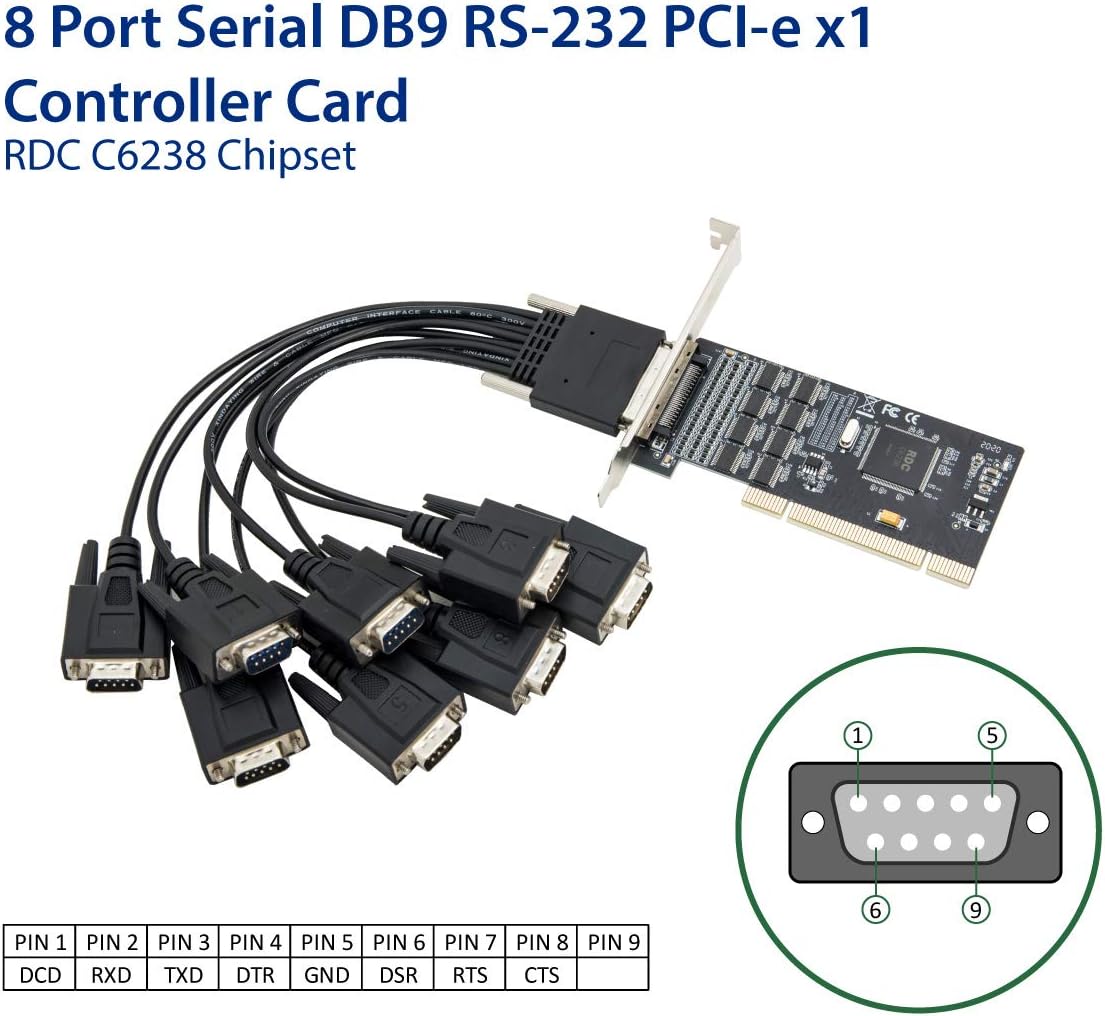

  • signal: RS232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
  • Connection type: DB62 female, DB62 to 8 RS232 and DB9
  • Transmission rate: 921.6Kbps
  • Data bits: 5, 6, 7, 8
  • Stop bits: 1, 1.5, 2
  • Check digit: None, Even, Odd, Space, Mark
  • Flow control: RTS / CTS XON / XOFF
  • Both sending and receiving support 64Byte FIFO driver and built-in software and hardware flow control.
  • Interface static protection: two-way protection, interface 200W lightning surge protection, maximum static protection 30KV.
PCI interface:
  • Bus: PCI 32-bit 33Mhz bus interface
  • Compliant with PCI specification version 2.1
  • Support to change the serial port number
OS SUPPORTED: Windows XP,Vista,7,8,8.1,10 Windows Server 98,2K,2K3,2K8,2K12,2K16 Linux2.4.x/2.6.x operating system



Package Information

Package Dimensions: L 7.00 × W 5.50 × H 3.00 in
Package Weight: 0.80lb
UPC: 810154010165

Package Content
  • 1 x RS-232 8-Port PCI Card
  • 1 x Driver CD
  • 1 x User Manual

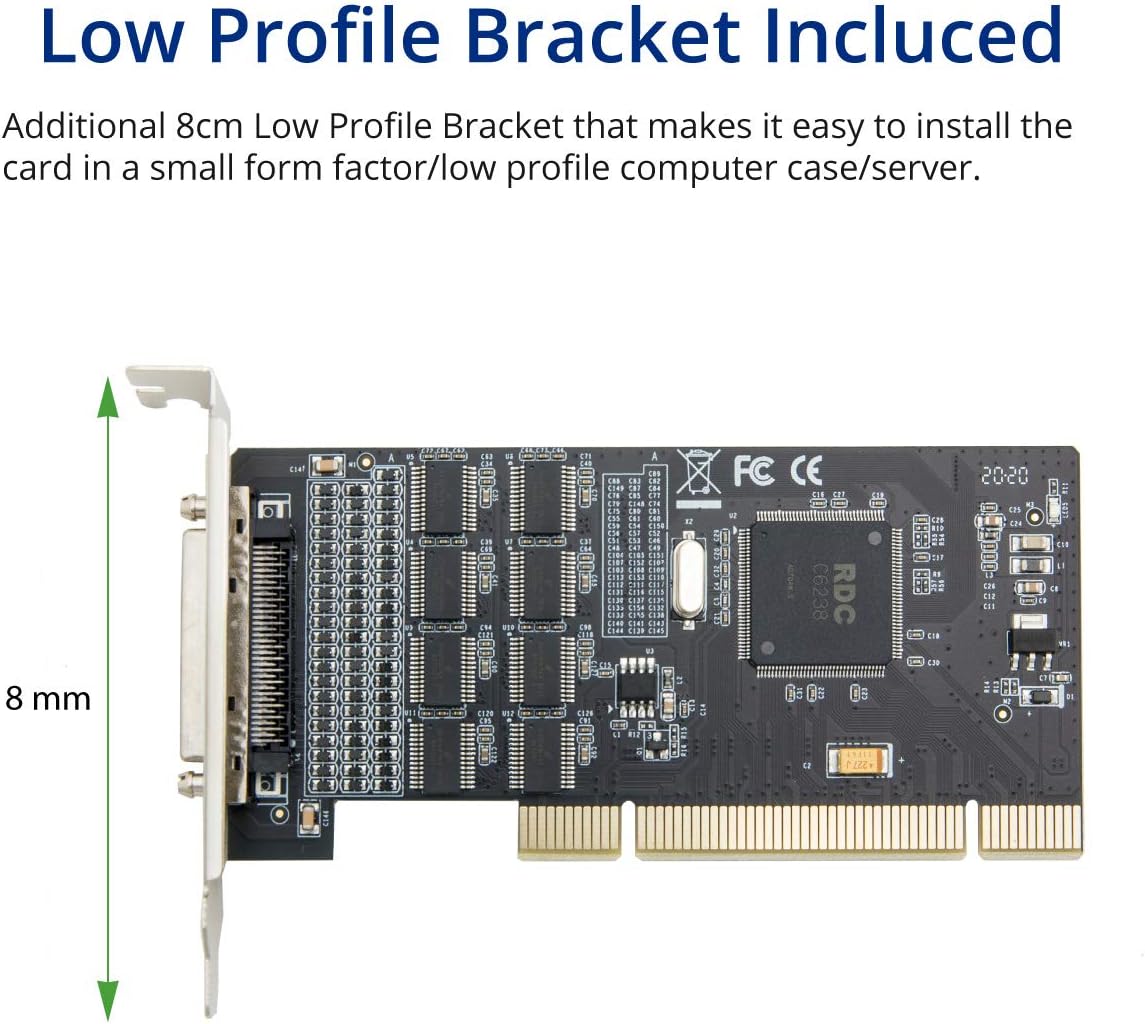

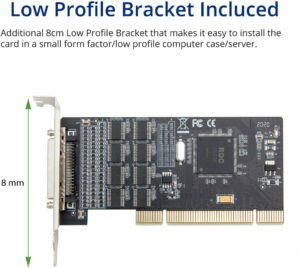

  • 1 x Low Profile
  • 1 x Fan Out Cable

A PC with PCI Port

TYPE OS LANGUAGE VERSION FILE
Drivers Windows and Linux English 1 Download
