Full Metal 8 Bay 2.5" SATA HDD and SDD Mobile Rack MiniSAS Interface for 5.25" Drive Bay – SY-MRA25052

Full Metal 8 Bay 2.5" SATA HDD and SDD Mobile Rack MiniSAS Interface for 5.25" Drive Bay - SY-MRA25052

Part Number: SY-MRA25052 Brand: Syba

It fits 8 2.5" SATA/SAS HDD into 2 5.25" Drive Bay. Supports 7 to 15mm thickness 2.5" HDD/SDD. Aluminum Panel, Metal Housing, and tray design with all metal parts. Mechanical locks keeps HDD working securely.

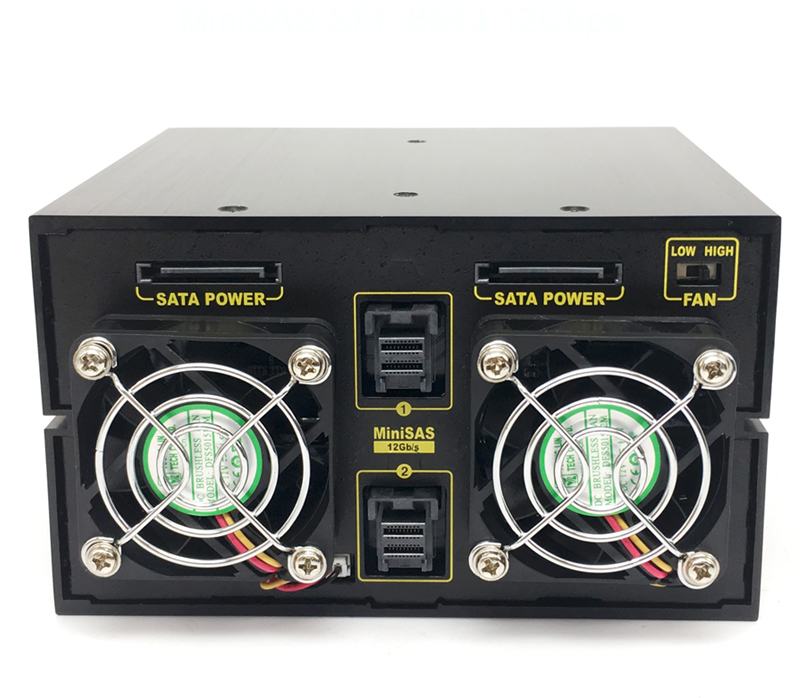

The SY-MRA25052 has been designed to maximize space use by allowing up to eight 2.5" SATA III hard drives, while only consuming two 5.25" device bays. The enclosure only requires two SATA power connections to power up the eight 2.5" hard drives. With the mobile rack system, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive. The rear of the SY-MRA25052 uses two MiniSAS connections to connect all eight SATA drives. It also has two 50mm cooling fans to pull cool air from the front ventilation slots over the drives and directs the warm air out through the rear ventilation slots. (MiniSAS to Port SATA Cable not included)
OS SUPPORTED: No Content.



Package Information

Package Dimensions: L 9.00 × W 5.10 × H 7.00 in
Package Weight: 3.90lb
UPC: 810154010936

Package Content
  • (1) Mobile Rack
  • (8) Frame Screws
  • (32) HDD tray Screws
  • (4) Keys
  • (1) User Manaul
