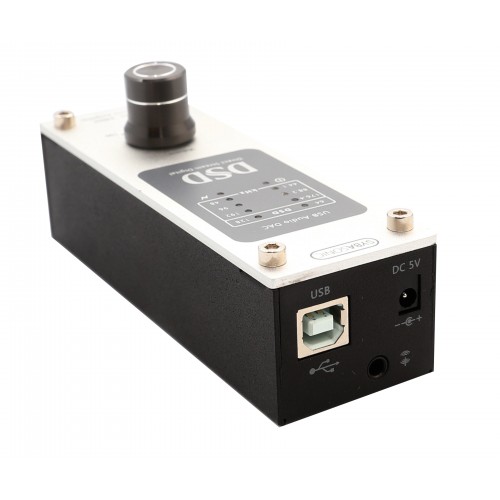

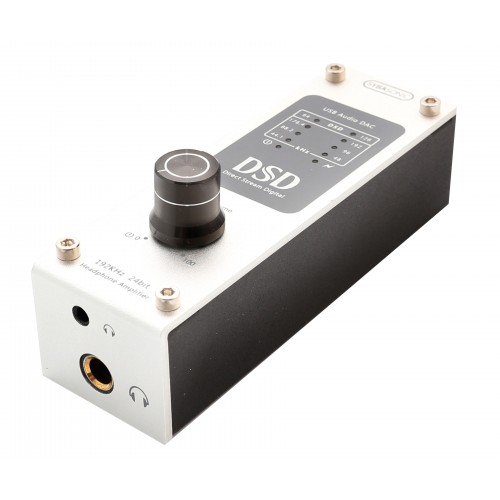

USB DSD 192 KHz/24bit DAC – SD-DAC63107

USB DSD 192 KHz/24bit DAC - SD-DAC63107

Part Number: SD-DAC63107 Brand: Syba

192KHz/24bit DSD digital Audio Playback system

Supports DSD 5.6M playback

PCM 192KHz/24 bit playback.

Works with Apple (with camera kit)and Android portable devices (with OTG adapter)

Headphone drive ability: 12-600ohm

Maximum headphone output power (at 1KHz and single channel) around 210mW/ 16ohms; around 190mW/ 32 ohm.

Analog volume control

Description PACKAGE DETAILS HARDWARE REQUIREMENTS DOWNLOAD QUESTIONS
The 192kHz/24 bit DSD USB Audio DAC is an ultra transparent mastering grade digital audio playback system. The 192kHz/24 bit DSD DAC is capable of converting high resolution PCM audio up to 192 kHz, and DSD audio(up to 128XDSD). The Dac allows you to bypass your computer's soundcard or headphone output and send digital audio signal through the USB interface. With this perfect digital interface between your computer and the music system, the sound quality is pushed to another higher level in your overall music environment.
OS SUPPORTED:
Windows OS and Mac OS
Package Information

Package Dimensions: L 6.25 × W 5.50 × H 2.75 in
Package Weight: 0.90lb
UPC: 810154014491

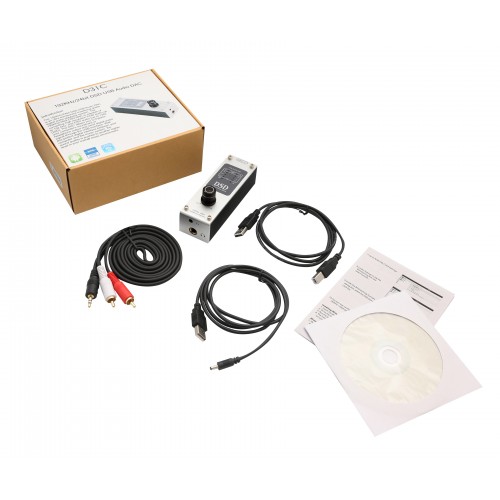

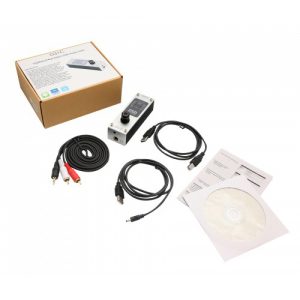

Package Content
  • usb audio dac
  • Driver CD
  • User’s Manual
  • 5v USB/AC adapter

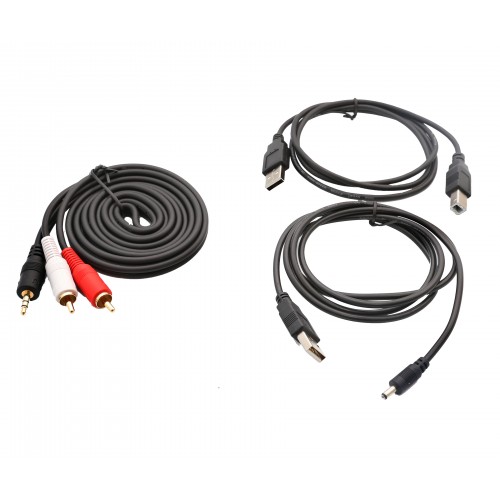

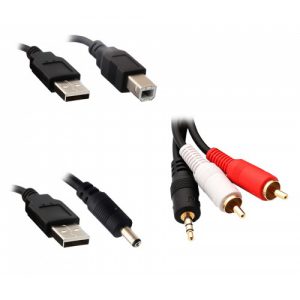

  • USB B to USB A Cable
  • Male 3.5 mm audio to RCA

PC with Free USB Data Port

TYPE OS LANGUAGE VERSION FILE
DAC Drivers All Windows English 1 Download
DSD Drivers All Windows English 1 Download
