USB 4.0 Type-C 10G Ethernet Adapter, For High-Speed Network Connections, RJ45 port supports 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T

USB 4.0 Type-C 10G Ethernet Adapter, For High-Speed Network Connections, RJ45 port supports 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T

Part Number: SY-TDB24097 Brand: IO Crest

  • AQC113 Chipset

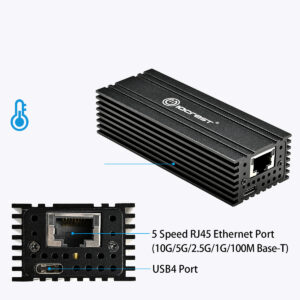

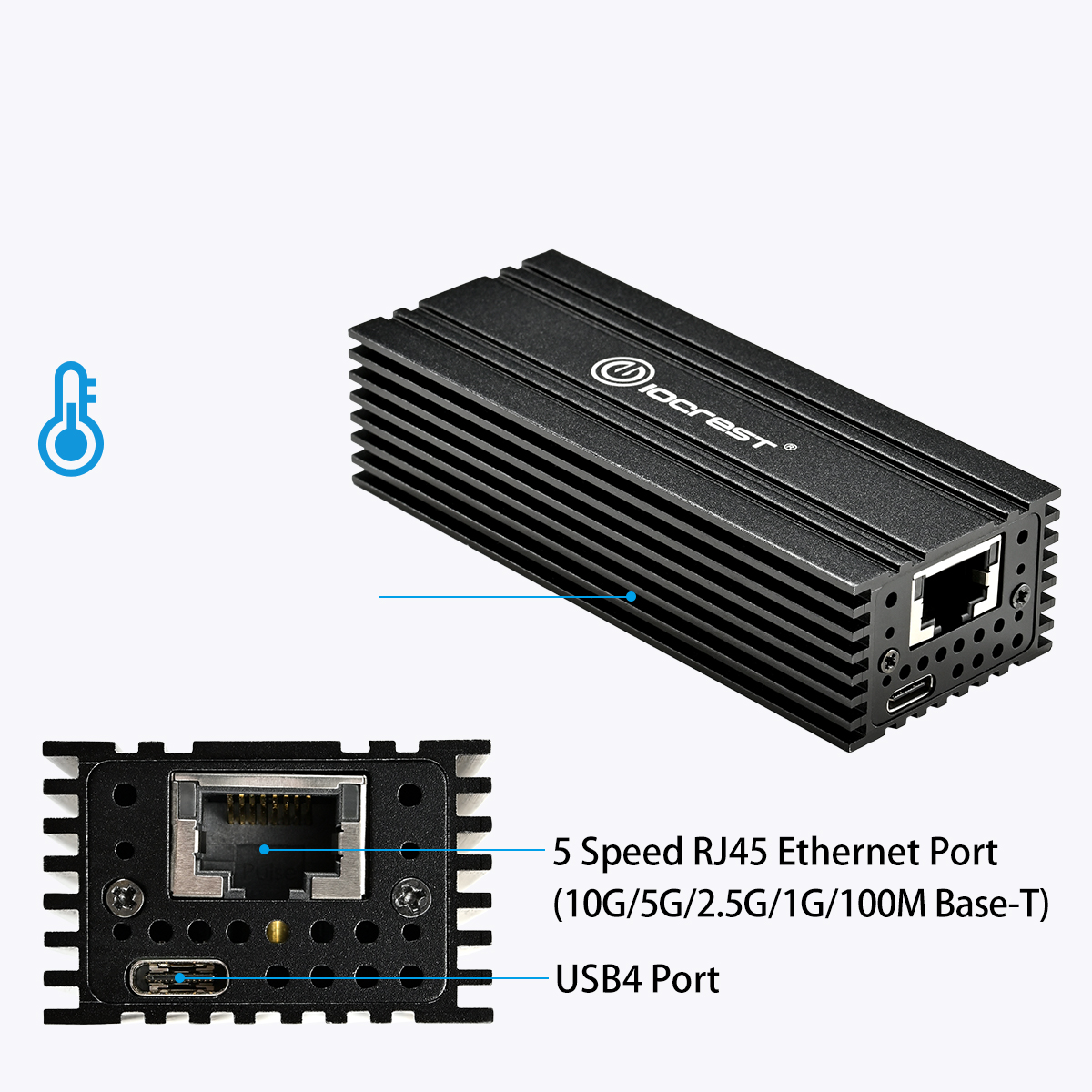

  • Adds an RJ45 10 Gigabit Ethernet port to your computer with USB Type-C ports. Connects to any USB Type-C port, or at the end of a USB device daisy chain.
  • 5 Gb/s and 2.5 Gb/s speeds supported over inexpensive CAT 5e (or better) cabling at distances up to 100 meters when used with a multi-Gigabit switch or router. Ethernet port supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T.
  • IEEE 802.1Q Tagged VLAN and Energy-Efficient Ethernet (IEEE 802.3az) supported. Jumbo frame 9K) and Wake-on-LAN (WoL) support

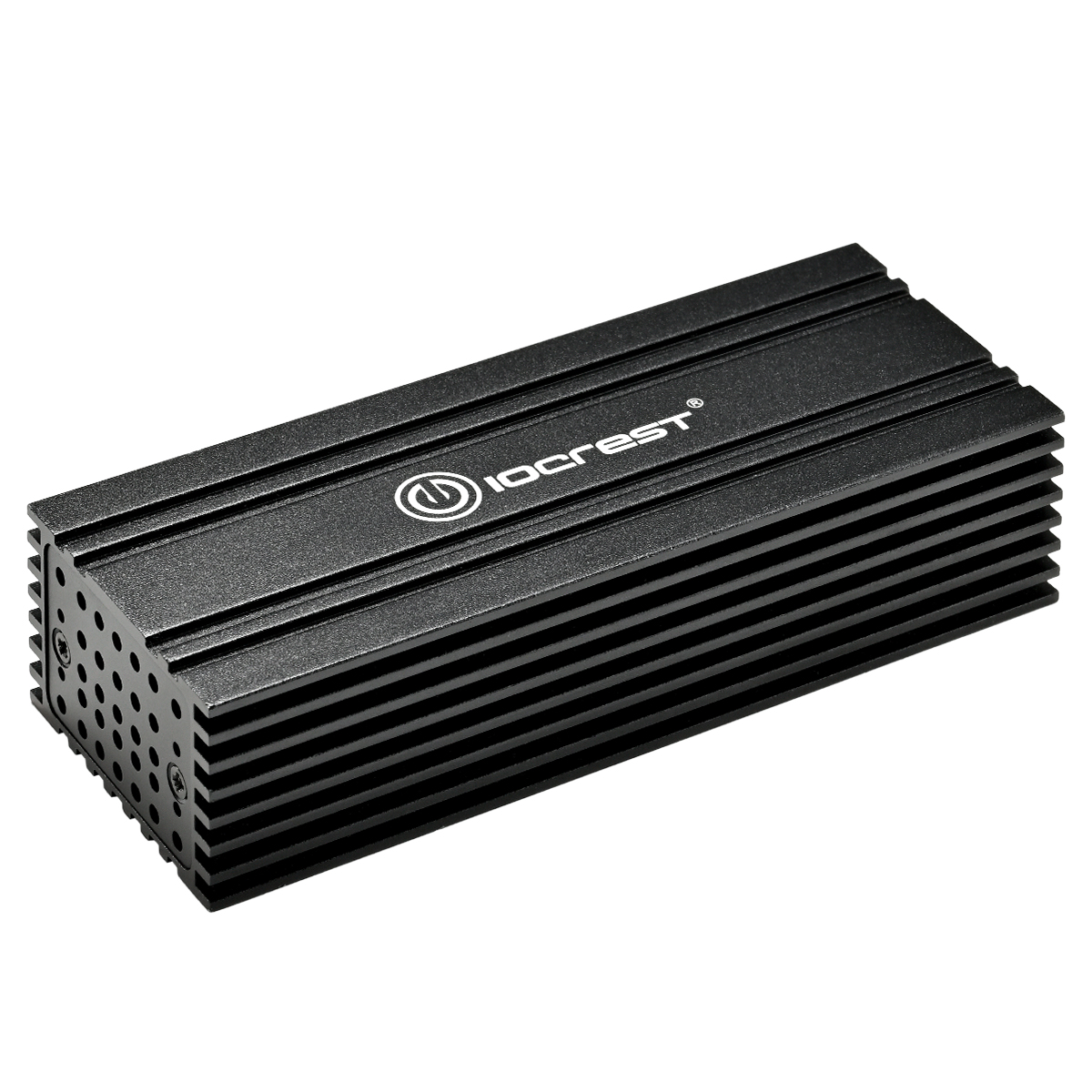

  • Large gaps for air flow and heatsink for passive cooling. Aluminum enclosure to withstands heavy use.
  • Powered through its USB connection, requires no power adapter. Bus powered 10GbE network adapter. Operating Temperature: 0°C to +108°C；Storage Temperature: -40°C to +110°C.
Description PACKAGE DETAILS HARDWARE REQUIREMENTS DOWNLOAD QUESTIONS

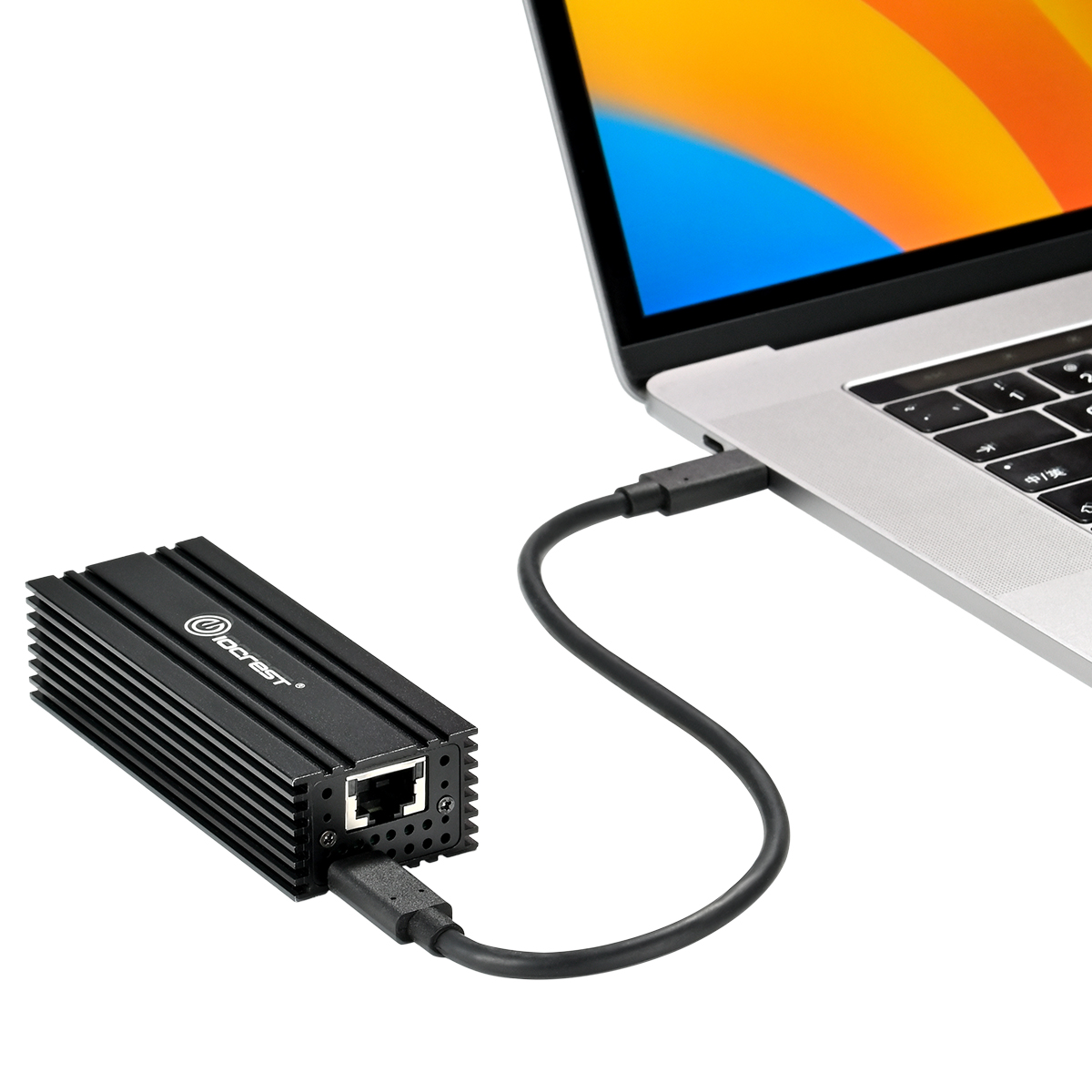

This network adapter offers a portable, bus powered, fanless and low-cost 10GbE solution enabling 10GBase-T and NBASE-T (IEEE 802.3bz-2016) connectivity for Apple® OS X® and Microsoft® Windows® environments over USB4.0. It is compatible with Thunderbolt 3/4/5. Ideal for  notebooks like the MacBook Pro (late 2016) and professional workstations that require reliable, accelerated access to external storage and networks for I/O demanding applications.

OS SUPPORTED: Windows 11, 10, 8, 7 / Server 2016, 2012 macOS 10.13.6+ Linux Linux 4.x (with Thunderbolt supported kernel)
Package Information:

Package Dimensions: L 7.00 × W 6.00 × H 1.00 in
Package Weight: 0.90lb
UPC: 850039353376

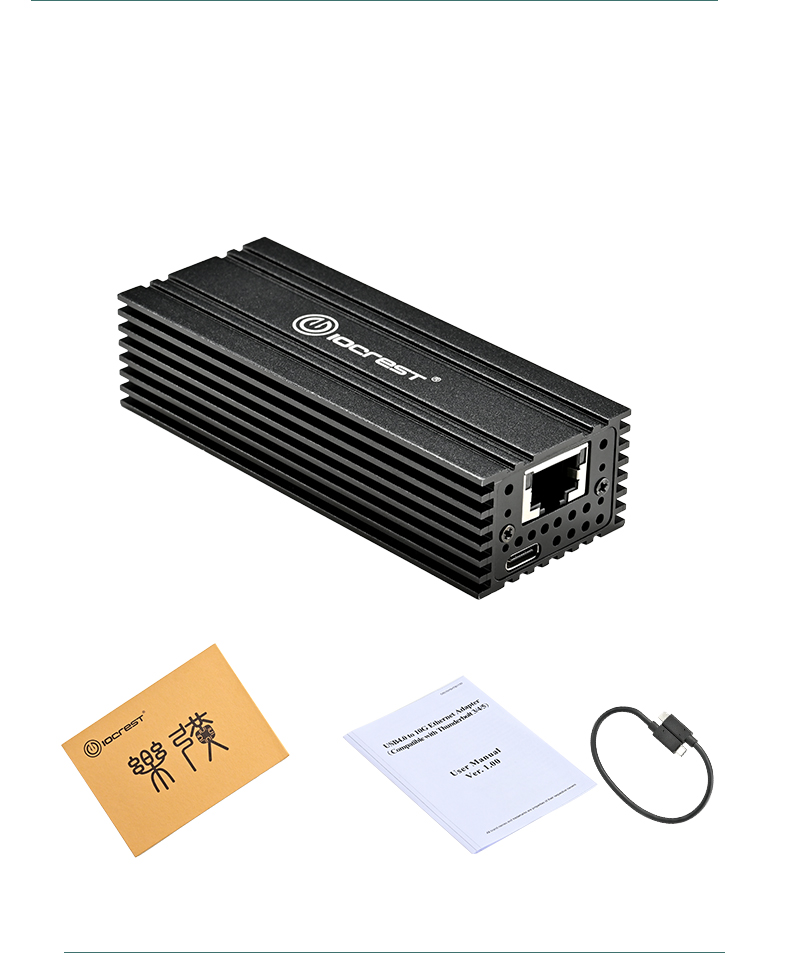

Package Content:
  • (1) 10 Gb/s Adapter
  • (1) USB-C Cable
  • (1) User Manual

PC with USB Type-C Port

TYPE OS LANGUAGE VERSION FILE
User Manual Download
Windows Driver Download
Techincal Question
If you have any technical questions or need troubleshooting please contact us here
General Inquiry

Please describe your question below and press the submit button. Our Syba team will reply as soon as possible.
